Autocom CDP

Autocom CDP+ Features/Benefits — and What It Will Do For You...

  • Supports all European, Japanese, North American cars - like: Alfa Romeo, Audi, BMW, Cadillac, Chevrolet, Chrysler, Citroen, Dacia, Daewoo, Dodge, Ferrari, Fiat, Ford, Honda, Hyundai, Isuzu, Iveco, Jaguar, Jeep, KIA, Lamborghini, Lancia, Land Rover, Lexus, Lotus, Maserati, Mazda, Mercedes, MG, Mini, Mitsubishi, Nissan, Opel/Vauxhall, Peugeot, Porsche, Renault, Rover, Saab, Samsung, Seat, Skoda, Smart, SsangYong, Subaru, Suzuki, Toyota, Volkswagen, Volvo, etc...
  • Supports ECU programming on some vehicles. So you can program/tune/reflash systems like: injector coding, key coding, remote keys, or replacement of a complete control system/actuator.
  • Read and erase fault codes - generic and brand specific codes for systems like: Engine, Transmission/Gear-box/Powertrain, Ignition, Climate, ABS, Service reset, SRS, Immobilizer, Instrument, Comfort system, etc
  • Restore vehicles stored service messages
  • Read live real-time data, record and save it for later use.
  • Fully compliant to EOBD/OBDII/OBDI/JOBD standards
  • Fast and safe identification of vehicles and systems with the aid of AutoCom ISI (Intelligent System Identification)
  • Intelligent System Scan (ISS) function - automatically scans through all the vehicle's control systems
  • User-friendly and intuitive software for passenger cars, light and heavy commercial vehicles and buses
  • Step-by-step easy software installation and activation
  • Handles all current communications standards for vehicle diagnostics
  • Inbuilt help for all software functions: You'll always know what to do next.
  • Unique multiplex technology, which minimizes the need for special cables
  • Supports virtually all possible vehicle protocols
  • Supports petrol, diesel, gas, hybrid, electric vehicles
  • Multiplexer function, 2xHS CAN (ISO 11898-2), SW CAN (SAE J2411), K/L (ISO 9141-2), VPW (J1850), PWM (J1850), RS485 (J1708), TTL and (SPI, analog in, 5 volt out).
Features in Detail...


  • VEHICLE APPLICATION: Autocom supports all brands of vehicles up to model year 2012! The support on European and Asian car manufacturers is excellent! Several interesting information can easily be found via Vehicle Information like: mounting position of the diagnostic socket
  • GLOBAL TEST: Autocom allows the vehicle to be tested globally by ISS button. The test checks the presence of all the available vehicle control units and is checking if DTC's are present or not. From this page you can have instant access to the desired ECUs.
  • ACTUAL VALUES: Autocom supports all the available parameters in the ECU. It is possible to display the information graphically and to store this data in the form of a log file.
  • READ AND ERASE DTC'S: Autocom reads all the diagnostic trouble codes (DTC's). The DTC's can be saved or printed.
  • TESTING ACTUATORS: Autocom allows you to test all outputs of an ECU in a simple way.This activation allows you to perform a quick diagnose.
  • CODING: When a controller is replaced, the proper coding of the old controller must be transferred to the new controller. Changing the configuration of the controller necessary if we add an accessory or a we want to use another used controller. With Autocom you can configure various functions such as keys, batteries, etc.
  • SERVICE RESET: With Autocom you can Reset the service indicator of all makes.
  • RESET CONVEYED VALUES: All service relevant adjustments can be performed f.e. calibrate the steering angle sensor and throttle, reset reset fuel mixture adjustments, reset stepper motors, programming injectors, etc.
  • FLIGHT RECORDER: Flight recording is an incredibly useful tool for workshop technicians. It allows you to record parameters in real time while the vehicle is being driven. During recording the user can, with a press of a button, highlight the specific error so they can investigate the detected error at a later time. CDP+ is equipped with built-in memory thus removing the need to bring along an additional computer.
  • MULTI COLOUR INDICATOR: With the multi colour indicator on CDP, you have full control of the diagnostic process. Different colors and sound communicates the status and the placement of the indicator allows you to see it from a far. For example, if the indicator alternates between blue and green the CDP+ is in communication with the vehicle control unit.
  • CONNECTOR WITH LED: To locate the diagnostic connector in the vehicle with ease, even if it’s located in a dark and inaccessible place, there is a LED on the 16-pin connector to help you along. The location and the design allows the light to function even when using the adaptor cable for vehicles without a 16-pin diagnostic socket.
  • VOLTAGE CHECK: When Autocom CDP is connected to the vehicle, the unit will check the battery voltage of the vehicle and automatically adjusts itself to the vehicle’s voltage level of 12 or 24 volts. If the voltage gets too high or too low, CDP+ will warn you with both sound and light and you will also be alerted through the battery icon in our diagnostic software.
  • CHASSIS NUMBER VIN: In our CARS software, we have a smart function that allows you to read out the chassis number from the vehicle that you would like to diagnose. This ensures that the right model and year is selected automatically. In addition, engine code for vehicles, which are commonly available on the markets, is also selected automatically.
  • ISS: Intelligent System Scan (ISS) scans through all the systems in the vehicle and displays the fault codes that are stored in each system. This saves time and you get a quick overview of the actual status of the entire vehicle. When the ISS is complete, you can then select a specific control system to analyse the results further on.
  • ISI: Intelligent System Identification (ISI) identifies and selects automatically the type of controller that is mounted in the vehicle. This ensures that the diagnostic session is performed correctly with the correct parameters as required.
  • REPORT FUNCTION: Under this function tab, you will be able to see the adaptations and adjustments that are possible for a specific vehicle without having the vehicle near you. Together with the help texts as a guide, you can plan and be effective in your work; even under complex situations.
  • OBD-FUNCTIONS: CDP+ is equipped with an unique multiplexer technology, which allows it to be used on all types of vehicles, regardless of voltage levels and communication standards. For those vehicles that do not use the standard 16-pin connector, we offer a complete set of certified and customized adapter cables and kits.
  • UNIVERSAL: For most OBD functions, such as adjustments and programmings, there are detailed instructions and help texts to assist you in your diagnosis work. You will find step by step information about prerequisites, preparation and implementation of various functions; making even the most complex function simple to perform.
  • HELP FUNCTION: For most OBD functions, such as adjustments and programmings, there are detailed instructions and help texts to assist you in your diagnosis work. You will find step by step information about prerequisites, preparation and implementation of various functions; making even the most complex function simple to perform.


Specifications:


  • Supports Languages: English , Cesky, Dansk, Deutsch, Espanol, Francais, Greek, Hollands, Hungarian, Italiano, Norsk, Polish, Romania,Russian, Srpski, Suomen kieli, Svenska, Turkish
  • Latest Stable Software Release Version: 01/2013 — with full license software (free future updates)
  • Works on a standard USB connection connected to your laptop.
  • 3 Year Warranty
  • Dimensions: 180 x 90 x 30 (mm)
  • Weight: 1.5 kg

System Requirements:


  • Windows XP, Vista, 7, 8. Works on 32/64-bit.
  • Laptop/Computer. Any brand or age. With 1 free USB port.

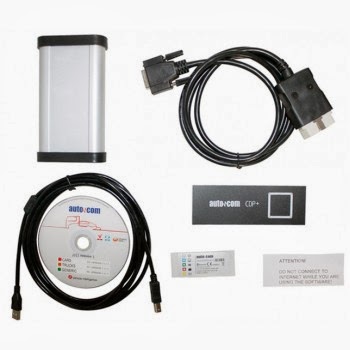

What's Included In Your Package:

1 x Autocom CDP+ Interface
1 x OBD2 main cable with LED connector
1 x USB cable
1 x User manual
1 x Software DVD (Software, Drivers, Installation Guide)

ΤΙΜΗ: 370 €
